OpenClaw Proxy Setup: A Practical Field Guide (2026)

• one workflow needs sticky continuity, another needs rotation

• retries multiply bad traffic instead of recovering it

• geo-targeted pages return inconsistent content

• block rate climbs as soon as concurrency increases

Who This Guide Is For

• data collection pipelines

• competitor and price monitoring

• QA workflows that include authenticated web flows

• agent tools that call Playwright, Puppeteer, or remote CDP browser sessions

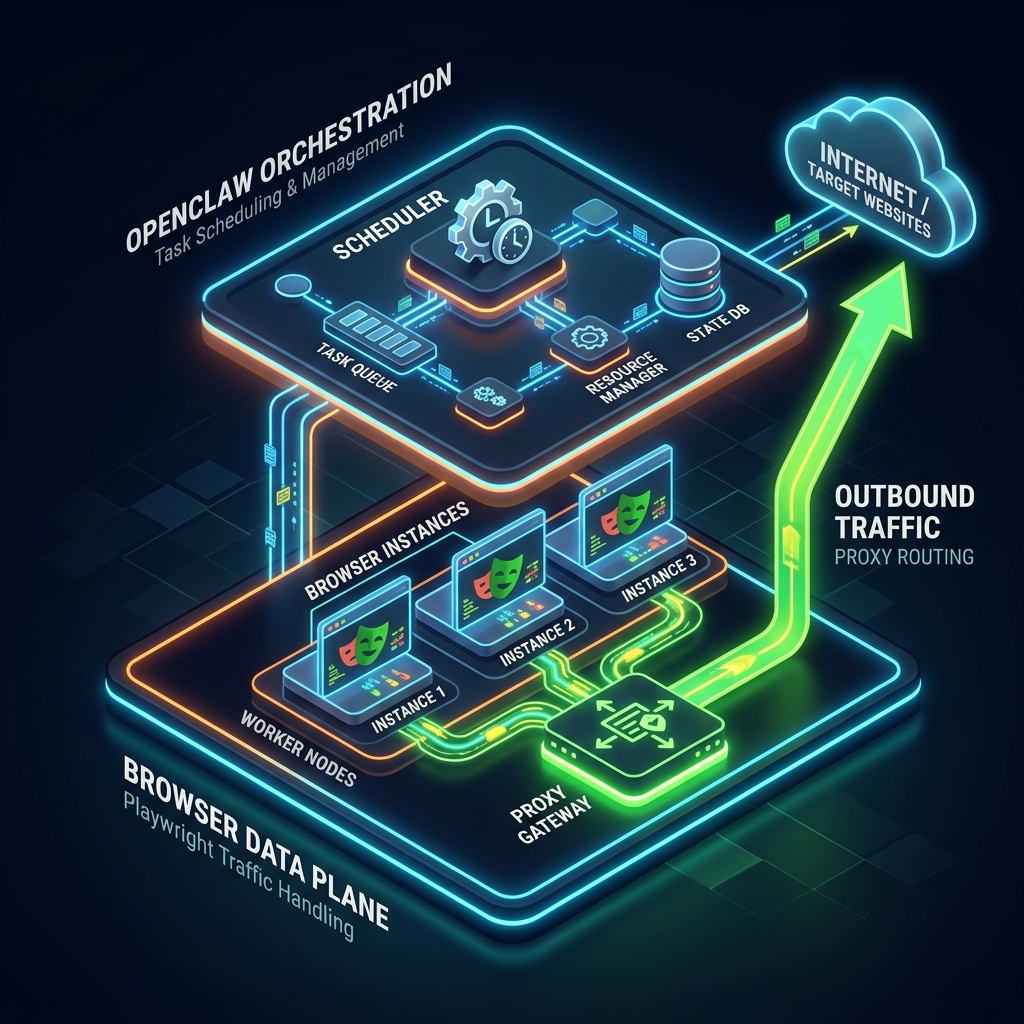

First Principle: OpenClaw Orchestrates, Browser Layers Emit Traffic

• browser tool implementation

• profile-specific browser runtime

• Playwright or Puppeteer launch logic

• remote CDP-connected browser worker

A Reliable Rollout Sequence (Do This In Order)

1. Prove the non-proxy browser path works.

2. Add proxy config at the browser boundary only.

3. Verify egress IP and geo.

4. Choose session policy per task type.

5. Scale concurrency gradually with telemetry.

Step 1: Validate Your Baseline Path

• OpenClaw runtime starts cleanly.

• The target tool can open a page.

• Browser profile or remote CDP connection is stable.

• You can run the same task repeatedly without proxy and reproduce baseline behavior.

Step 2: Gather Proxy Inputs Up Front

• proxy endpoint (host:port or full URL)

• auth credentials

• supported protocols (http, https, socks5)

• session mode options (rotating and sticky)

• geo constraints (country/city/ISP if needed)

export PROXY_SERVER="http://p1.bytesflows.com:8001"
export PROXY_USER="username"
export PROXY_PASS="password"

Step 3: Wire Proxy at Browser Launch

import { chromium } from 'playwright';

function getProxyConfig() {
  if (!process.env.PROXY_SERVER) return undefined;

  return {
    server: process.env.PROXY_SERVER,
    username: process.env.PROXY_USER,
    password: process.env.PROXY_PASS,
  };
}

const browser = await chromium.launch({
  proxy: getProxyConfig(),
});

const page = await browser.newPage();
await page.goto('https://iprobe.io/json');
console.log(await page.textContent('body'));
await browser.close();

• apply proxy settings in the runtime that owns outbound traffic

• avoid assuming one global OpenClaw flag can override all browser paths

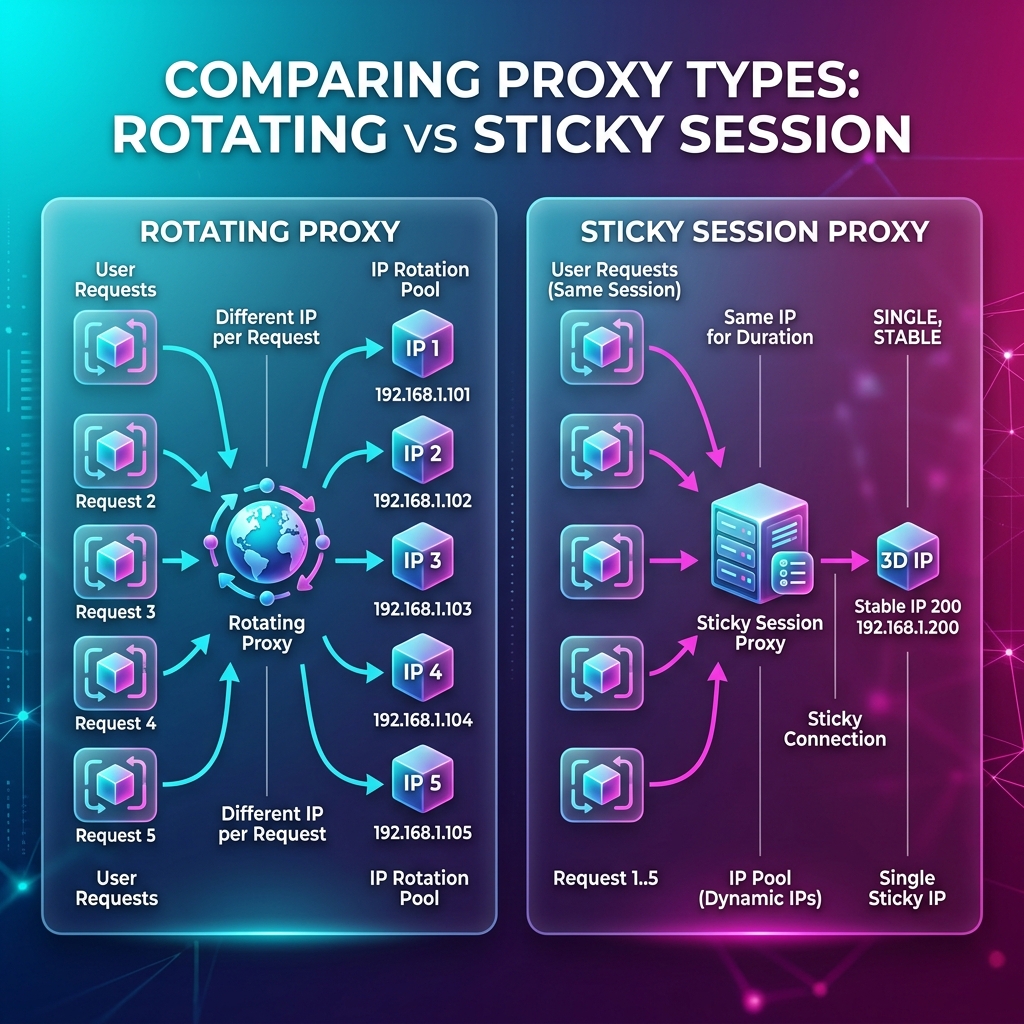

Step 4: Choose Session Policy by Workflow Shape

type TaskMode = 'stateless' | 'stateful';

function chooseSessionMode(taskMode: TaskMode) {
  return taskMode === 'stateful' ? 'sticky' : 'rotating';
}

Step 5: Validate End to End Before Scaling

1. Egress IP changed from origin.

2. Geo target matches expectation.

3. Sticky task preserves continuity across steps.

4. Rotating task shows distribution across requests.

5. Retry behavior does not loop on one poisoned identity.

• https://iprobe.io/json

• https://api.ipify.org?format=json

• https://ipinfo.io

Production Defaults That Usually Work

• Start with low concurrency per domain.

• Keep stateful tasks isolated from bulk stateless scraping.

• Enforce max retries with backoff and jitter.

• Rotate identity for retries only when the task is stateless.

• For stateful tasks, prefer sticky continuity and slower pacing.

attempt 1: initial route
attempt 2: same mode, increased delay
attempt 3: route refresh only for stateless task
attempt 4: fail fast + log root-cause context

Concurrency Budgeting (Simple Model)

effective_concurrency = min(worker_count, proxy_pool_parallel_capacity, target_tolerance)

• block rate

• challenge/CAPTCHA rate

• median and p95 page load latency

• success rate by task type

Debug Runbook: "OpenClaw Proxy Is Broken"

Case A: Egress IP never changes

• config applied in control layer, not browser layer

• inspect runtime that calls browser launch

• log resolved proxy config at task start (without leaking secrets)

• run direct IP probe in that same runtime

Case B: Login works once, then fails

• rotating identity inside stateful flow

• move flow to sticky session

• pin context lifecycle to flow lifecycle

• reduce aggressive retries

Case C: Wrong locale/currency/content despite correct IP

• browser fingerprint settings conflict with geo route

• align locale/timezone/language headers with target region

• verify profile consistency between attempts

Case D: Low-volume success, high-volume collapse

• per-domain pressure too high

• lower concurrency

• add interval jitter

• segment workloads by task type and route policy

Security and Operational Hygiene

• secrets only in env/secret manager

• no credentials in logs

• redact proxy URLs before error reporting

• rotate credentials on schedule

• keep a single helper for proxy config resolution so behavior stays consistent

When Residential Proxies Become Necessary

• block rate creates direct business cost

• geo fidelity affects decisions or downstream models

• browser behavior must resemble real-user traffic over long runs

• reputation-driven filtering is stronger than syntax-based filtering

Final Checklist Before Production Cutover

1. Proxy config is attached at browser emission layer.

2. Egress and geo checks are automated in smoke tests.

3. Session policy is assigned by task semantics.

4. Retry/backoff logic is explicit and bounded.

5. Metrics are visible by task type.

6. Secrets are managed outside code.
