What Is a Residential Proxy? How Routing, Sessions, and Validation Work

A residential proxy routes a client's outbound connection through an IP address used on a residential access network. For engineering teams, the important question is not whether an IP is "undetectable"—it is not—but whether the route, session behavior, geography, protocol support, reliability, and cost fit a specific workload.

This guide explains the network model, shows how to verify a proxy before using it in automation, and separates provider-specific credential syntax from standard HTTP and SOCKS behavior. It does not claim that residential routing bypasses anti-bot systems or platform controls.

How residential proxy routing works

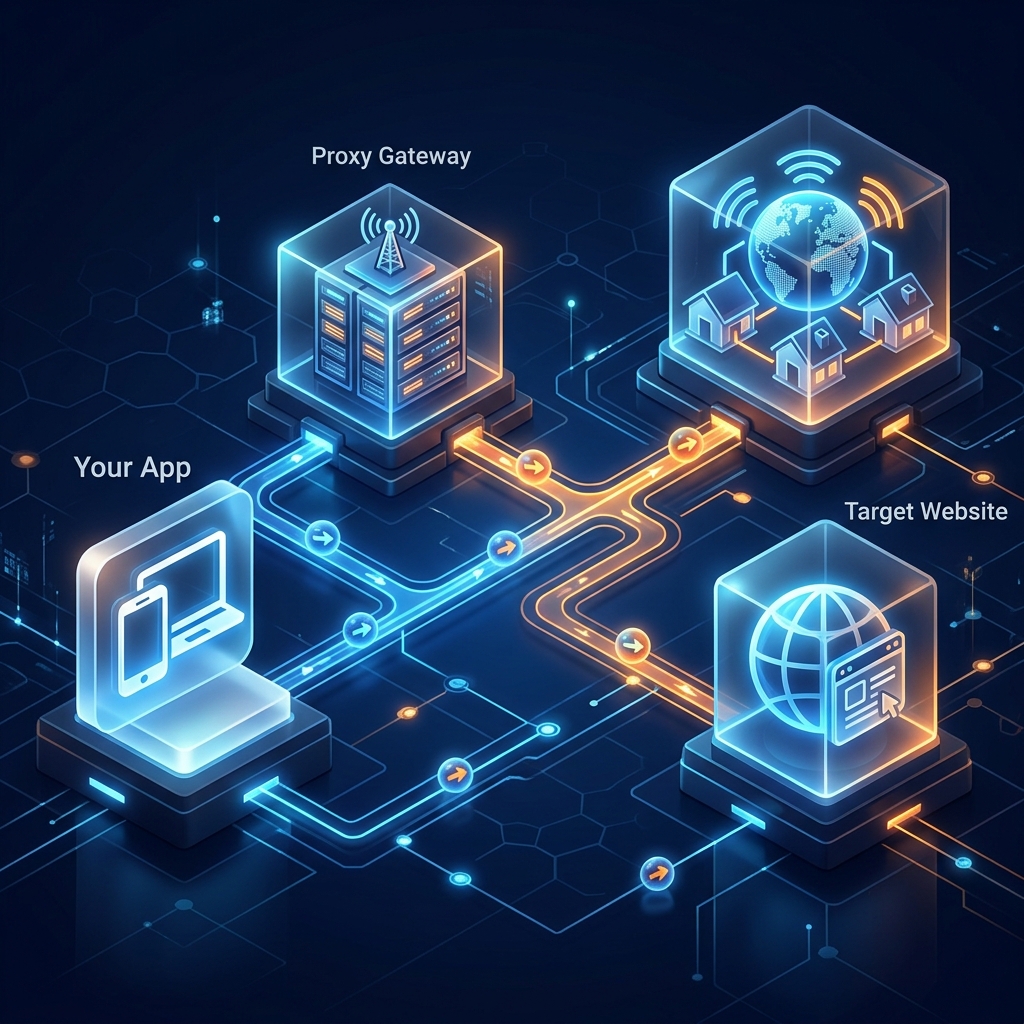

A typical request path has four roles:

Application -> Proxy gateway -> Selected exit -> Destination

1. Application: your HTTP client, browser automation worker, or other authorized client.
2. Proxy gateway: authenticates the customer and applies the provider's routing policy.
3. Exit: makes the outbound connection seen by the destination.
4. Destination: evaluates the request using its own application, security, rate-limit, authentication, and abuse controls.

The proxy changes the network egress path. It does not automatically change browser storage, cookies, JavaScript-visible browser properties, account reputation, request semantics, or every other signal a destination may use.

A provider may expose country, city, ASN, rotation, or sticky-session controls through credentials or an API. Those controls are provider-specific, not part of the HTTP proxy or SOCKS5 standards. Always use the syntax documented for the provider you actually deploy.

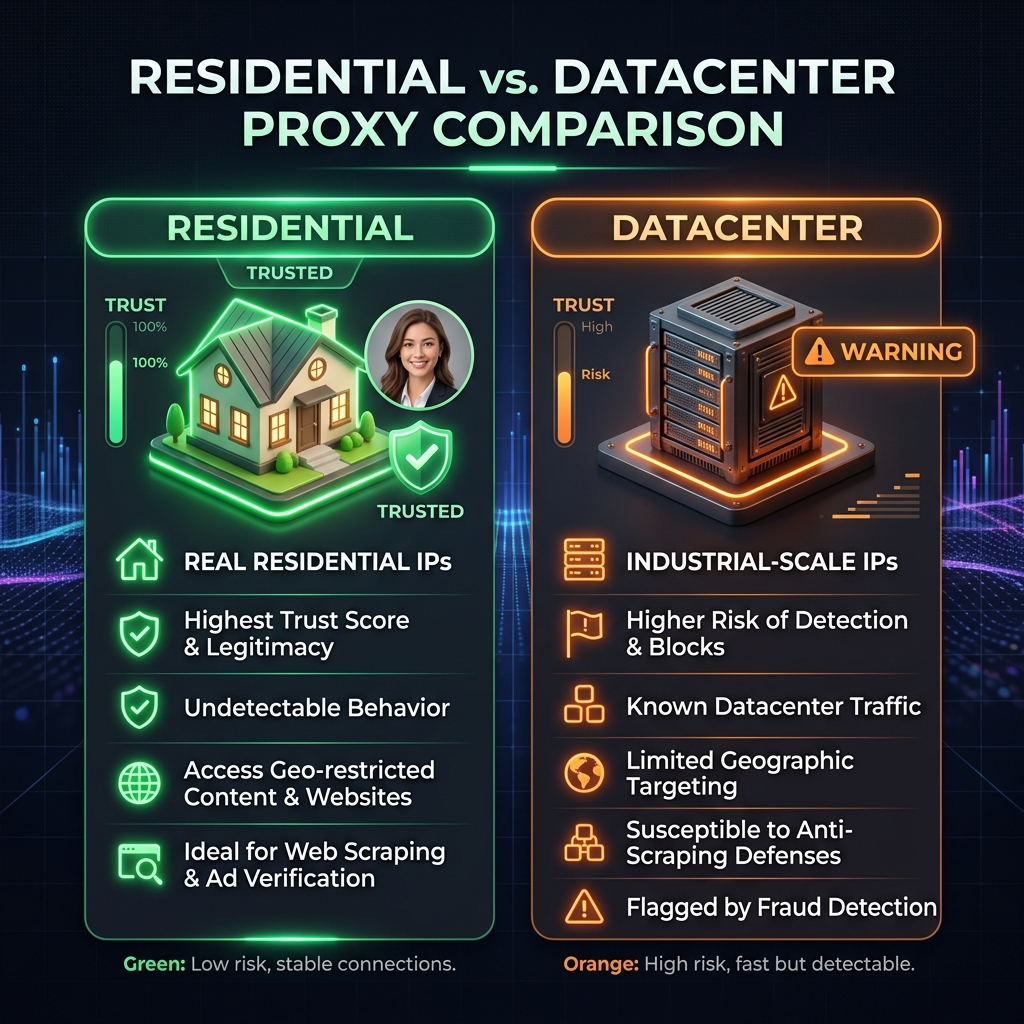

Residential, datacenter, ISP, and mobile routes are different choices

Do not select a route type from a universal trust ranking. Test it against the workload you own or are authorized to access.

For a deeper selection framework, see Residential vs. datacenter proxies. If you have already chosen residential routing and need implementation guidance, use Residential proxies for web scraping.

Verify the route before adding a scraper or browser

Start with the smallest possible network test. This separates proxy authentication and routing failures from browser or parser failures.

curl --fail-with-body \
  --connect-timeout 10 \
  --max-time 30 \
  --proxy "$PROXY_URL" \
  https://example.com/

PROXY_URL is an example environment variable, not a BytesFlows credential specification. Supply a proxy URL supported by your provider and client.

For authenticated HTTP proxies, an HTTP 407 Proxy Authentication Required response means the proxy is challenging the client for proxy authentication. RFC 9110 requires a Proxy-Authenticate challenge on a 407 response. A 407 therefore tells you to investigate the proxy-authentication layer; it does not by itself prove that a password is wrong or that an account has no balance.[1]↗

Record evidence from the probe

For each controlled test, record at least:

• timestamp and worker region;
• proxy mode and requested geography, without storing secrets;
• HTTP status or transport exception;
• connect and total duration;
• observed exit IP when your test endpoint is designed to return it;
• application-level result required by the workload.

Do not publish a success rate or latency claim until you have retained enough methodology and raw observations to reproduce it.

Treat IP geolocation as an estimate

An IP geolocation lookup is useful evidence, but it is not proof of a household, street address, or exact user location. MaxMind explicitly documents that IP geolocation cannot be guaranteed to be 100% accurate and that city-level results have an accuracy radius.[2]↗

For geo-sensitive QA, validate two layers:

1. Network evidence: the IP database reports the expected country/region at an acceptable confidence level.
2. Application evidence: the destination returns the market, currency, locale, catalog, or other result your test actually requires.

If those layers disagree, record wrong_geo or an equivalent workload-specific failure instead of silently treating the request as successful.

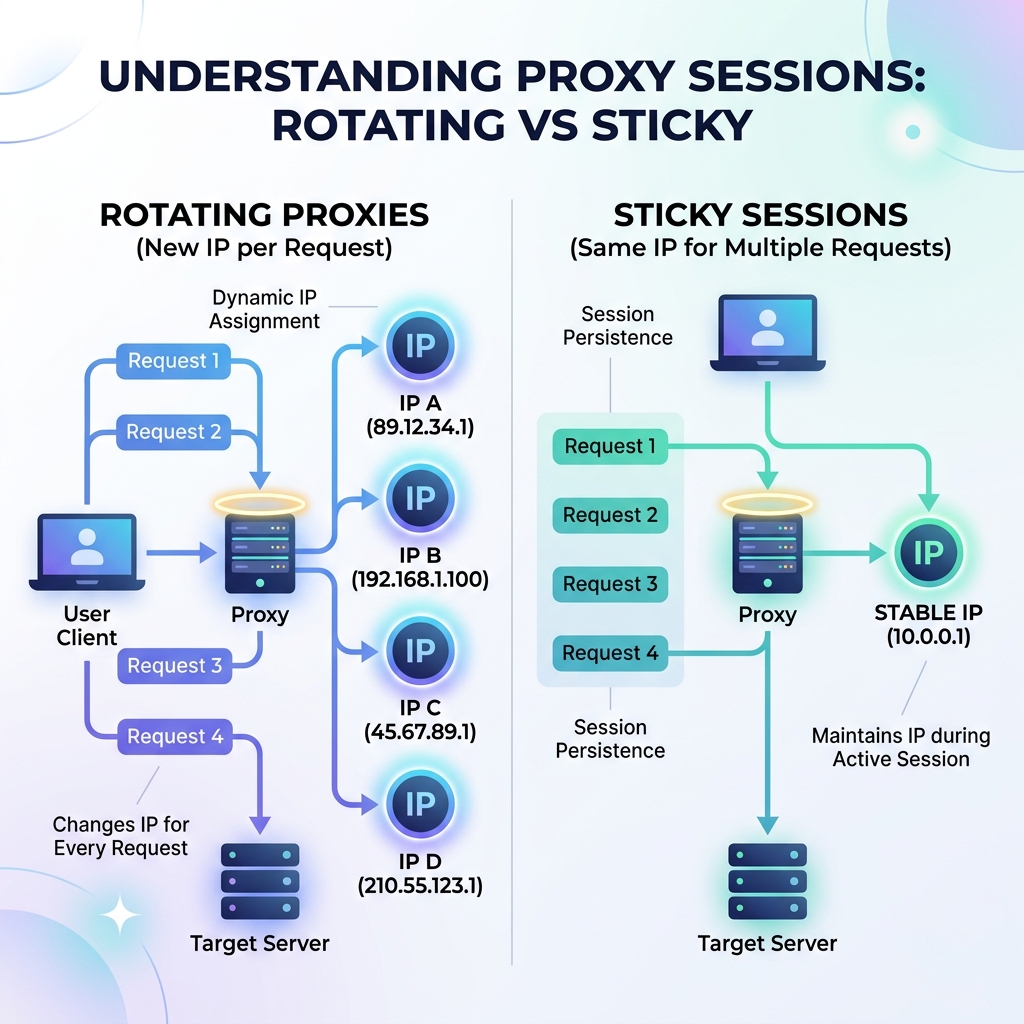

Rotation and sticky sessions solve different problems

Rotation means the provider is allowed to select a different eligible exit according to its routing policy. It is useful when request identity does not need continuity.

Sticky sessions ask the provider to preserve an exit association for some period or session identifier. The exact duration, replacement behavior, and credential syntax are provider-specific. Do not assume that a sticky session guarantees an IP for an exact number of minutes unless the provider documents that guarantee.

For workflows with login state, carts, multi-page forms, or other stateful behavior, bind the application session and proxy session deliberately. Changing the route mid-flow can be a correctness problem even when every HTTP request succeeds.

See Rotating vs. sticky residential proxies for the session-design trade-offs.

HTTP proxy vs. SOCKS5

An HTTP proxy is a natural fit for HTTP/HTTPS clients. SOCKS5 is a more general proxy protocol and RFC 1928 defines CONNECT as well as UDP ASSOCIATE, but a specific provider or client does not necessarily support every SOCKS5 feature.[3]↗

That distinction matters in documentation: protocol capability is not the same as product capability. Verify both the provider and client before promising UDP support, remote DNS behavior, or authentication features.

For browser automation, Playwright currently supports HTTP(S) and SOCKSv5 proxy configuration globally or per browser context; its documented username/password fields apply to HTTP(S) proxy authentication.[4]↗

A safe Playwright configuration pattern

The following Node.js example uses documented Playwright proxy fields and keeps credentials out of source code. The timeout values are example operational limits, not universal recommendations.

const { chromium } = require('playwright');

function requiredEnv(name) {
  const value = process.env[name]?.trim();
  if (!value) throw new Error(`Missing required environment variable: ${name}`);
  return value;
}

async function main() {
  const server = requiredEnv('PROXY_SERVER');
  const username = process.env.PROXY_USERNAME?.trim();
  const password = process.env.PROXY_PASSWORD?.trim();

  if ((username && !password) || (!username && password)) {
    throw new Error('Set both PROXY_USERNAME and PROXY_PASSWORD, or neither.');
  }

  const browser = await chromium.launch({ headless: true });
  let context;

  try {
    context = await browser.newContext({
      proxy: {
        server,
        ...(username ? { username, password } : {}),
      },
    });

    const page = await context.newPage();
    const response = await page.goto('https://example.com/', {
      waitUntil: 'domcontentloaded',
      timeout: 30_000,
    });

    if (!response) throw new Error('Navigation completed without an HTTP response.');
    console.log({ status: response.status(), url: response.url() });
  } finally {
    if (context) await context.close();
    await browser.close();
  }
}

main().catch((error) => {
  console.error(error);
  process.exitCode = 1;
});

This example verifies that the browser can navigate through the configured proxy. For geo-sensitive work, add a dedicated route check and validate the destination's application-level result separately.

Diagnose failures by layer

Retries should be bounded and reason-aware. Never retry authentication failures, policy denials, or persistent application errors indefinitely. A retry is useful only when the failure is plausibly transient and another attempt is permitted.

Measure useful results, not just HTTP 200

A transport success can still produce the wrong market, stale content, an interstitial, an empty payload, or invalid structured data. Define a workload-specific validator before comparing routes.

Useful metrics include:

• usable-result rate;
• wrong-geo rate;
• 407, 403, 429, timeout, and transport-error rates;
• p50 and p95 task duration from your own observations;
• bytes transferred per usable result;
• retries per usable result;
• cost per usable result using your actual invoice or plan terms.

Do not substitute vendor marketing claims for your own controlled acceptance test.

Security, privacy, and compliance boundaries

Use proxies and automation only where you have authorization and a lawful basis for the activity. Respect applicable terms, access controls, privacy requirements, data minimization obligations, and rate limits. Do not use proxy routing as a mechanism to evade authentication, payment controls, account restrictions, or explicit security decisions.

Keep proxy credentials in a secret store or environment variables, redact them from logs and traces, and rotate them if exposed. Treat captured browser state, cookies, HAR files, traces, and screenshots as potentially sensitive evidence with explicit retention rules.

A useful stop condition is simple: if the destination indicates that the workflow is unauthorized, requires human verification you are not permitted to automate, or continues to reject requests after a bounded diagnostic attempt, stop the job and escalate rather than increasing evasion behavior.

Production checklist

FAQ

What is a residential proxy?

A residential proxy is a proxy service whose outbound route uses an IP associated with a residential access network. It changes the network egress seen by the destination; it does not make an automated client indistinguishable from a person.

Are residential proxies always better than datacenter proxies?

No. The better route depends on authorization, destination behavior, geography, session requirements, latency, reliability, availability, and cost. Run the same acceptance test against each candidate route.

Does a residential proxy bypass Cloudflare or other anti-bot systems?

There is no such guarantee. Security systems can evaluate many signals beyond the source IP, and their behavior can change. Treat challenges and denials as application/security signals, follow authorized workflows, and stop when policy requires.

Should I rotate the IP after every request?

Only when the workload is stateless and the provider's rotation semantics fit the task. Stateful workflows often need session continuity. Rotation also does not override destination rate limits or policies.

Can a proxy change my browser fingerprint?

A proxy changes the network route. Browser-visible properties, storage, JavaScript behavior, TLS behavior, account state, and other signals are separate concerns. Do not claim that a proxy changes all of them.

How should I validate proxy geography?

Use IP geolocation as one signal, account for its documented uncertainty, and verify the destination's application-level market or locale when that is what the task actually depends on.

Where should I go next?

For implementation, see Residential proxies for web scraping. For session design, see Rotating vs. sticky residential proxies. For browser configuration, see How to use proxies with Playwright.
